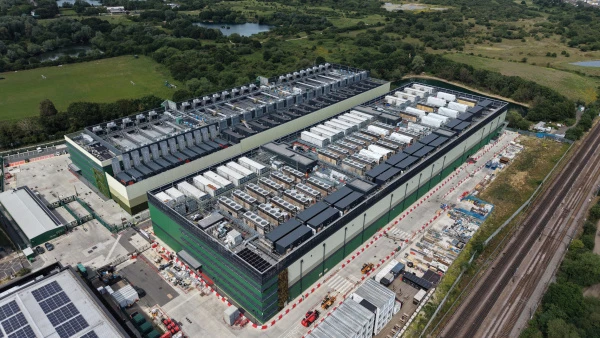

What Grounding & Bonding Standards Are Required in a Data Center?
The Standards Chain Behind Every Grounding Connection
This white paper traces the complete regulatory and standards hierarchy that governs grounding and bonding hardware selection in data center environments, from the top-level planning document (ANSI/BICSI 002) down to the field-level requirement to use Belleville spring washers on aluminum busbars with steel or silicon-bronze fasteners.
The central legal mechanism is NEC §110.3(B), which makes manufacturer installation instructions code-enforceable once equipment carries a UL 467 listing. This single provision transforms what might otherwise be considered optional guidance, including washer type, washer preload, and torque values, into legally binding installation requirements that no inspector or installer may waive.
Grounding and bonding requirements in data centers flow through a layered hierarchy of standards. Each layer either mandates alignment with the layers below it or incorporates those lower-level requirements by reference.
Know Which Standard Actually Requires Belleville Washers on Your Grounding Lugs

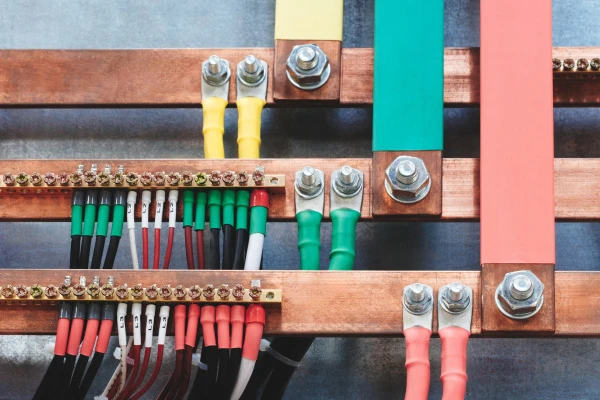

When a UL 467-listed grounding lug is installed on a busbar using hardware with a different coefficient of thermal expansion from the lug and/or busbar material, most commonly steel or silicon-bronze fasteners with aluminum, Belleville (spring-type) washers are not optional. They are required by ANSI NEMA CC1 2018 (R2023) Section 5.5 and by the manufacturer's installation instructions, which are code-enforceable under NEC §110.3(B). Industry practice and Solon Manufacturing's engineering guidance recommend preloading the washer to 60 to 100% of its flat load, with 80% flat as the ideal installation target.
Download the White Paper: Grounding & Bonding Standards Hierarchy: From ANSI/BICSI 002 to the Field Requirement for Belleville Washers
Download the white paper, Grounding & Bonding Standards Hierarchy: From ANSI/BICSI 002 to the Field Requirement for Belleville Washers, for the complete chain of authority, the ANSI NEMA CC1 torque table by bolt size, and Solon's Belleville washer and preload specifications for UL 467 listed grounding lugs.
