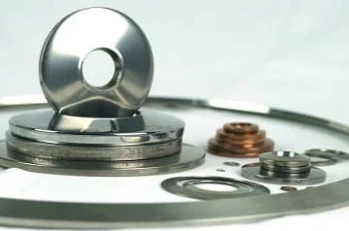

Solon Flange Washers
Solon Flange Washers help create a more reliable flange assembly by maintaining residual gasket/bolt load and ensuring even load distribution. We maintain a stock supply of H-13 Tool Steel, 17-7 PH Stainless Steel, and Inconel 718 flange washers. As a flange washer manufacturer, we can also produce custom flange washers using 17-4 PH Stainless Steel, Custom 450, Waspaloy, and more upon request.
Flange Washer Size Options
Solon imperial and metric flange washer size options include:- Imperial: 3/8” – 4”
- Metric: 6mm – 110mm
TORQUE CALCULATION
Imperial: (ft. - lbs.) = .2 x Bolt Diameter (in.) x Load (lbs.) / 12
Metric: (N-m) = .2 x Bolt Diameter (mm) x Load (N) / 1000
Premium Standard & Custom Flange Washers
Up to 92% of all flange leaks are caused by insufficient bolt preload. Solon Flange Washers are designed to maintain sufficient bolt tension and resultant gasket pressure in high-temperature and high-pressure applications where safety and emission containment are top priorities. Standard and custom Belleville spring and flange washer combinations are designed to provide additional clamping pressure and support.Flange Washer Material & Finish Options
Standard and custom flange washers are available in various material options, including:17-7 PH Stainless Steel
- Operating temperature range
- -320°F / -200°C to 550°F / 288°C
- For indoor/outdoor service, electrical and corrosive atmospheres
- Not recommended for extreme chloride or fluoride applications without plating or reduced stresses
- Suitable for cryogenic applications
- Highly magnetic
- Standard finish: Scale-free plain finish
- Also available: Sulfamate nickel plated (AMS 2424)
H-13 Tool Steel
- Operating temperature range
- Ambient to 1100°F / 594°C
- For indoor/outdoor service and high-temperature atmospheres
- Fully magnetic
- Finish: Natural finish with light oil-coat
Inconel 718
- Operating temperature range
- -400°F / -240°C to 1100°F / 594°C
- For indoor/outdoor service and high-temperature applications or corrosive atmospheres
- Non-magnetic
- Available in NACE MR0175 Condition
- Standard finish: Scale-free plain finish
Flange Washer Application Resources
Solon Manufacturing offers a range of resources, including calculators, application pages, white papers, and case studies, to assist you in finding the perfect product for your application. Specific applications and resources include:Application: LNG/Cryogenic Flange Live Loading
- Calculator: LNG / Cryogenic Flange Calculator
- White Paper: Cryogenic Testing of 17-7PH Flange Washers
- Case Study: Flange Washers Reduce Fugitive Emissions in LNG Applications
- Calculator: Flange Leak Prevention Calculator
- White Paper: Why do Gasketed Joints Leak?
- Case Study: Solon Flange Washers Solve Gasketed Joint Leaks for Heat Exchangers
- Case Study: Solon Flange Washers Solve Gasketed Joint Leaks in Nuclear Power Station Heat Exchangers
Why Choose Solon Manufacturing for Your Flange Washer Needs?
When it comes to purchasing Belleville springs and washers, we understand that you have many options. At Solon Manufacturing, we welcome the competition. That’s why our products are backed with over 70 years of proven success. Other reasons to choose Solon Manufacturing for your Belleville product needs include:- Our knowledgeable engineering team offers continued support and product recommendations
- High-volume and customized orders to distributors and OEMs worldwide
- Vertically integrated manufacturing approach to meet product specifications
- All products manufactured in the USA
